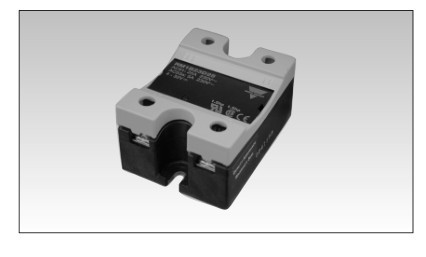

瑞士佳樂RM1A40D50 ☆適用于交流控制電阻負載，內置壓敏開關。 ①尺寸：58.2*44.8*28.8   ②控制電壓范圍：4-32VDC  20-280VDC  22-48VDC ③額定電流：25A、50A、75A、100A ④工作電壓：24-265Vrms  42-440Vrms  42-530Vrms  42-660Vrms ⑤工作溫度：-40－80度 ⑥認證/標準：CE-UL-CSA。
RM1B23D100\RM1B23D25\RM1B23D50               RM1B23D75\  RM1B40D100\RM1B40D25
型號  負載電流  負載電壓  電壓
RM1A23D25  25A  24-265VAC  4-32VDC
RM1A23D50  50A  24-265VAC  4-32VDC
RM1A23D75  75A  24-265VAC  4-32VDC
RM1A23D100  100A  24-265VAC  4-32VDC
RM1A23A25  25A  24-265VAC  20-280VAC/22-48VDC
RM1A23A50  50A  24-265VAC  20-280VAC/22-48VDC
RM1A23A75  75A  24-265VAC  20-280VAC/22-48VDC
RM1A23A100  100A  24-265VAC  20-280VAC/22-48VDC
RM1A40D25  25A  42-440VAC  4-32VDC
RM1A40D50  50A  42-440VAC  4-32VDC
RM1A40D75  75A  42-440VAC  4-32VDC
RM1A40D100  100A  42-440VAC  4-32VDC
RM1A40A25  25A  42-440VAC  20-280VAC/22-48VDC
RM1A40A50  50A  42-440VAC  20-280VAC/22-48VDC
RM1A40A75  75A  42-440VAC  20-280VAC/22-48VDC
RM1A40A100  100A  42-440VAC  20-280VAC/22-48VDC
RM1A48D25  25A  42-530VAC  4-32VDC
RM1A48D50  50A  42-530VAC  4-32VDC
RM1A48D75  75A  42-530VAC  4-32VDC
RM1A48D100  100A  42-530VAC  4-32VDC
RM1A48A25  25A  42-530VAC  20-280VAC/22-48VDC
RM1A48A50  50A  42-530VAC  20-280VAC/22-48VDC
RM1A48A75  75A  42-530VAC  20-280VAC/22-48VDC
RM1A48A100  100A  42-530VAC  20-280VAC/22-48VDC
RM1A60D25  25A  42-660VAC  4-32VDC
RM1A60D50  50A  42-660VAC  4-32VDC
RM1A60D75  75A  42-660VAC  4-32VDC
RM1A60D100  100A  42-660VAC  4-32VDC
RM1A60A25  25A  42-660VAC  20-280VAC/22-48VDC
RM1A60A50  50A  42-660VAC  20-280VAC/22-48VDC
RM1A60A75  75A  42-660VAC  20-280VAC/22-48VDC
RM1A60A100  100A  42-660VAC  20-280VAC/22-48VDC
RM1A60M50AHS03K  30A  42-660VAC  5-24VDC/AC
RM1A60A5040AHS04K  40A  42-660VAC  5-24VDC/AC
RM1A23M25  25A  24-265VAC  5-24VDC/AC
RM1A40M25  25A  42-440VAC  5-24VDC/AC
RM1A48M25  25A  42-530VAC  5-24VDC/AC
RM1A60M25  25A  42-660VAC  5-24VDC/AC
RM1A23M50  50A  24-265VAC  5-24VDC/AC
RM1A40M50  50A  42-440VAC  5-24VDC/AC
RM1A48M50  50A  42-530VAC  5-24VDC/AC
RM1A60M50  50A  42-660VAC  5-24VDC/AC
RM1A23M75  75A  24-265VAC  5-24VDC/AC
RM1A40M75  75A  42-440VAC  5-24VDC/AC
RM1A48M75  75A  42-530VAC  5-24VDC/AC
RM1A60M75  75A  42-660VAC  5-24VDC/AC
RM1A23M100  100A  24-265VAC  5-24VDC/AC
RM1A40M100  100A  42-440VAC  5-24VDC/AC
RM1A48M100  100A  42-530VAC  5-24VDC/AC
RM1A60M100  100A  42-660VAC  5-24VDC/AC …型號，如需其他型號，可來電咨詢！
