3X10 3T
產品詳情
|
Functional Characteristics 電氣特性
|
測試電流Testing current |
熔斷時間Blow Time |
|
Min最小 |
Max最大 |
|
150% |
1h |
/ |
|
210% |
/ |
120s |
|
275% |
400ms |
10s |
|
400% |
150ms |
3s |
|
1000% |
20ms |
150ms |
|
|
Breaking Capacity 分斷能力 |
|
VDE:35A or 10In whichever is greater (250mA-6.3A) |
|
UL:50 amperes at 125V/250V AC (250mA-6.3A) |
|
Material 材料 |
|

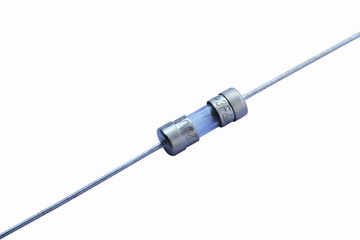

Fuse body –GLASS TUBE |
|
End cap--nickel plated brass |
|
Pigtail--tin plated copper on nickel plated brass cap |
Approvals認證（○ Pending ● Approvals）
|
額定電流Current Rating |
額定電壓VoltageRating |
認證Approvals |
|
|
|
|
|
|
250mA |
125V/250V |
● |
● |
● |
|
|
300mA |
125V/250V |
|
|
● |
|
|
315mA |
125V/250V |
● |
● |
● |
|
|
350mA |
125V/250V |
|
|
● |
|
|
400mA |
125V/250V |
|
|
● |
|
|
500mA |
125V/250V |
● |
● |
● |
|
|
600mA |
125V/250V |
|
|
● |
|
|
630mA |
125V/250V |
● |
● |
● |
|
|
750mA |
125V/250V |
|
|
● |
|
|
800mA |
125V/250V |
● |
● |
● |
|
|
1A |
125V/250V |
● |
● |
● |
● |
|
1.25A |
125V/250V |
● |
● |
● |
● |
|
1.5A |
125V/250V |
|
|
● |
● |
|
1.6A |
125V/250V |
● |
● |
● |
● |
|
2A |
125V/250V |
● |
● |
● |
● |
|
2.5A |
125V/250V |
● |
● |
● |
● |
|
3A |
125V/250V |
|
|
● |
● |
|
3.15A |
125V/250V |
● |
● |
● |
● |
|
3.5A |
125V/250V |
|
|
● |
● |
|
4A |
125V/250V |
● |
● |
● |
● |
|
5A |
125V/250V |
○ |
○ |
● |
● |
|
6A |
125V/250V |
|
|
● |
|
|
6.3A |
125V/250V |
○ |
○ |
● |
| |
