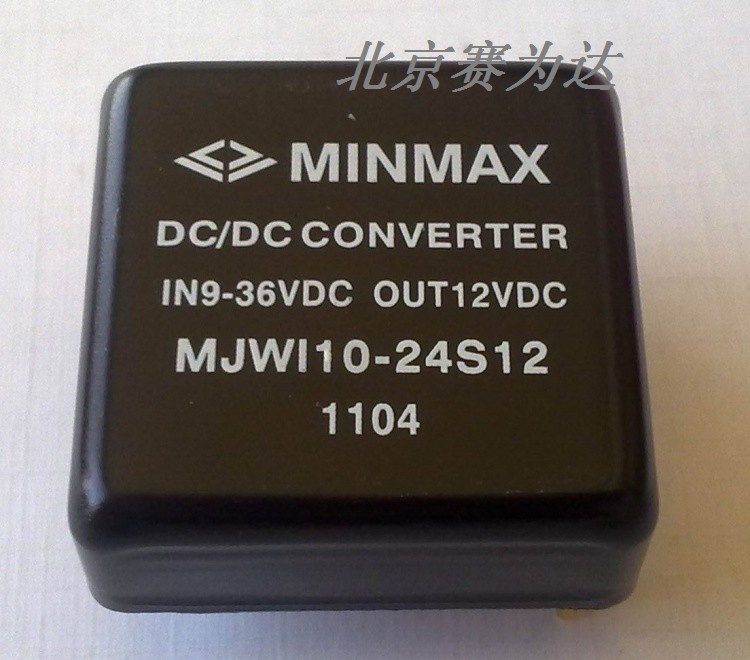

MJWI10系列，MINMAX,DC/DC,10W, 1.5KVDC隔離電壓，單雙路輸出
產品特性：
|
Voltage Accuracy |
±1.0% typ |
|
Line Regulation |
±0.3% typ |
|
Load Regulation |
±0.5% typ |
|
Ripple & Noise (20MHz) |
60mVP-P typ |
|
Switching Frequency |
330kHz typ |
|
Efficiency |
Up to 84% |
|
Short Circuit |
Continuous |
|
Isolation Voltage |
1500VDC |
|
Isolation Resistance |
1000M? min |
|
Isolation Capacitance |
1000pF typ |
|
Operating Temperature |
-40°C to +60°C |
|
Remote On/Off |
Enable High |
|
MTBF |
1,000,000 hours min |
|
Case Material |
Metal, non-conductive baseplate |
Model Selection Guide | ||||
|
Model Number |
Input Voltage VDC |
Output Voltage VDC |
Output Current mA max |
|
|
MJWI10-24S033 |
|
3.3 |
2200 |
|
|
MJWI10-24S05 |
|
5 |
2000 |
|
|
MJWI10-24S051 |
|
5.1 |
2000 |
|
|
MJWI10-24S12 MJWI10-24S15 |
24 |
12 |
830 |
|
|
MJWI10-24S15 |
( 9 – 36 ) |
15 |
660 |
|
|
MJWI10-24D05 |
|
±5 |
±1000 |
|
|
MJWI10-24D12 |
|
±12 |
±410 |
|
|
MJWI10-24D15 |
|
±15 |
±330 |
|
|
MJWI10-48S033 |
|
3.3 |
2200 |
|
|
MJWI10-48S05 |
|
5 |
2000 |
|
|
MJWI10-48S051 |
|
5.1 |
2000 |
|
|
MJWI10-48S12 MJWI10-24S15 |
48 |
12 |
830 |
|
|
MJWI10-48S15 |
( 18 – 75 ) |
15 |
660 |
|
|
MJWI10-48D05 |
|
±5 |
±1000 |
|
|
MJWI10-48D12 |
|
±12 |
±410 |
|
|
MJWI10-48D15 |
|
±15 |
±330 | |
