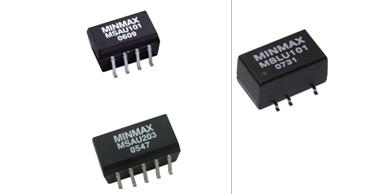

MSAU100/MSAU200/MSLU100系列：MSAU105,MSAU101,MSAU103
所屬類別：電源產品分類>>模塊電源(DC/DC)
電子信箱：han867@163.com
聯系電話：400-6699-731
聯 系 人：韓飛
更新時間：2011-6-8 16:06:47
|
產品特性 |
| ||
|
| |||
|
• 輸出電壓準確度 |
±1.0%典型值 |
| |
|
• 電壓調整率 |
±1.2%典型值 |
| |
|
• 負載調整率 |
±10%最大值 |
| |
|
• 漣波雜訊 |
60mV P-P 典型值 | ||
|
• 短路保護模式 |
短暫 |
| |
|
• 隔離電壓 |
MSAU100 / 200 |
– 1kVDC | |
|
|
MSLU100 |
– 1.5kVDC | |
|
• 效率 |
高達82% | ||
|
• 切換頻率 |
100kHz 典型值 | ||
|
• 工作溫度 |
MSAU100 / 200 |
– -40°C to +85°C | |
|
|
MSLU100 |
– -25°C to +75°C | |
|
• 外殼材質 |
MSAU100 / 200 |
– 鑄造 | |
|
|
MSLU100 |
– 塑膠, 94V-0 | |
|
• 安全認證 |
2 MHours min | ||
|
• 洄焊爐溫度最高可達245度 | |||
|
產品型號 |
輸入電壓 |
輸出電壓 |
輸出電流 | |
|
特點 | ||||
|
Standard |
Low Cost |
VDC |
VDC |
mA Max. |
|
MSAU105 |
MSLU101 |
5 ( 4.5 – 5.5 ) |
3.3 |
300 |
|
MSAU101 |
MSLU102 |
5 |
200 | |
|
MSAU102 |
|
9 |
110 | |
|
MSAU103 |
MSLU104 |
12 |
84 | |
|
MSAU104 |
MSLU105 |
15 |
67 | |
|
MSAU201 |
MSLU106 |
±5 |
±100 | |
|
MSAU202 |
|
±9 |
±55 | |
|
MSAU203 |
MSLU108 |
±12 |
±42 | |
|
MSAU204 |
MSLU109 |
±15 |
±33 | |
|
MSAU115 |
MSLU111 |
12 ( 10.8 – 13.2 ) |
3.3 |
300 |
|
MSAU111 |
MSLU112 |
5 |
200 | |
|
MSAU112 |
|
9 |
110 | |
|
MSAU113 |
MSLU114 |
12 |
84 | |
|
MSAU114 |
MSLU115 |
15 |
67 | |
|
MSAU211 |
MSLU116 |
±5 |
±100 | |
|
MSAU212 |
|
±9 |
±55 | |
|
MSAU213 |
MSLU118 |
±12 |
±42 | |
|
MSAU214 |
MSLU119 |
±15 |
±33 | |
|
MSAU125 |
MSLU121 |
24 ( 21.6 – 26.4 ) |
3.3 |
300 |
|
MSAU121 |
MSLU122 |
5 |
200 | |
|
MSAU122 |
|
9 |
110 | |
|
MSAU123 |
MSLU124 |
12 |
84 | |
|
MSAU124 |
MSLU125 |
15 |
67 | |
|
MSAU221 |
MSLU126 |
±5 |
±100 | |
|
MSAU222 |
|
±9 |
±55 | |
|
MSAU223 |
MSLU128 |
±12 |
±42 | |
|
MSAU224 |
MSLU129 |
±15 |
±33 | |
