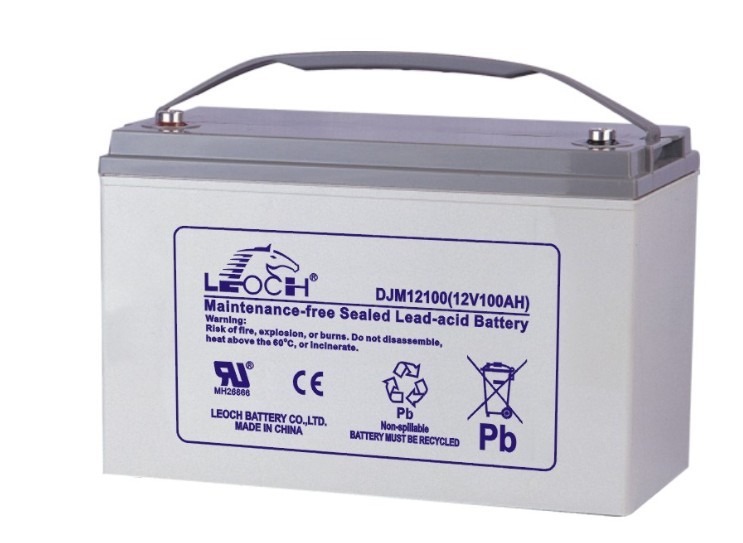

理士電池(理士蓄電池) DJM12100
12V 100Ah
DJM12100 is a general purpose battery up to 12 years in standby service.

理士電池 DJM12100
規格書
電壓值  12V
容量  100Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
尺寸  Length 330±3mm (12.99 inches)
Width 173±2mm (6.81 inches)
Container Height 212±2mm (8.35 inches)
Total Height (with Terminal) 220±2mm (8.66 inches)
重量(kg)   Approx 30.0 kg (66.15lbs)
最大放電電流5秒(A)   1200A (5s)
內阻(mΩ)   Approx 4.9mΩ
溫度工作范圍   Discharge：-15℃~50℃(5°F~122°F)
Charge：0℃~40℃(32°F~104°F)
Storage：-15℃~40℃(5°F~104°F)
一般使用溫度工作范圍   25°C ±3°C (77°F ± 5°F)
浮充使用 No limit on Initial Charging Current Voltage
13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C
循環使用  Initial Charging Current less than 30.0A.Voltage
14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C
自放電   LEOCH DJM series Batteries can be stored for more than 6 months at 25°C (77°F) and then a freshening charge is required. For higher temperatures the time interval will be shorter.
端子   T11
電槽組材質 ABS
