您的位置：電源在線首頁>>產品中心>>電源配套分類>>電子元件>>HR連接器C2505 2.50mm Pitch Terminal / Housing產品詳情

HR連接器C2505 2.50mm Pitch Terminal / Housing

公司名稱：東莞建亞電子有限公司
所屬類別：電源配套分類>>電子元件
電子信箱：kina@ttconn.com
聯系電話：0769-83970035
聯 系人：王生
更新時間：2016-1-25 10:55:09

產品詳情

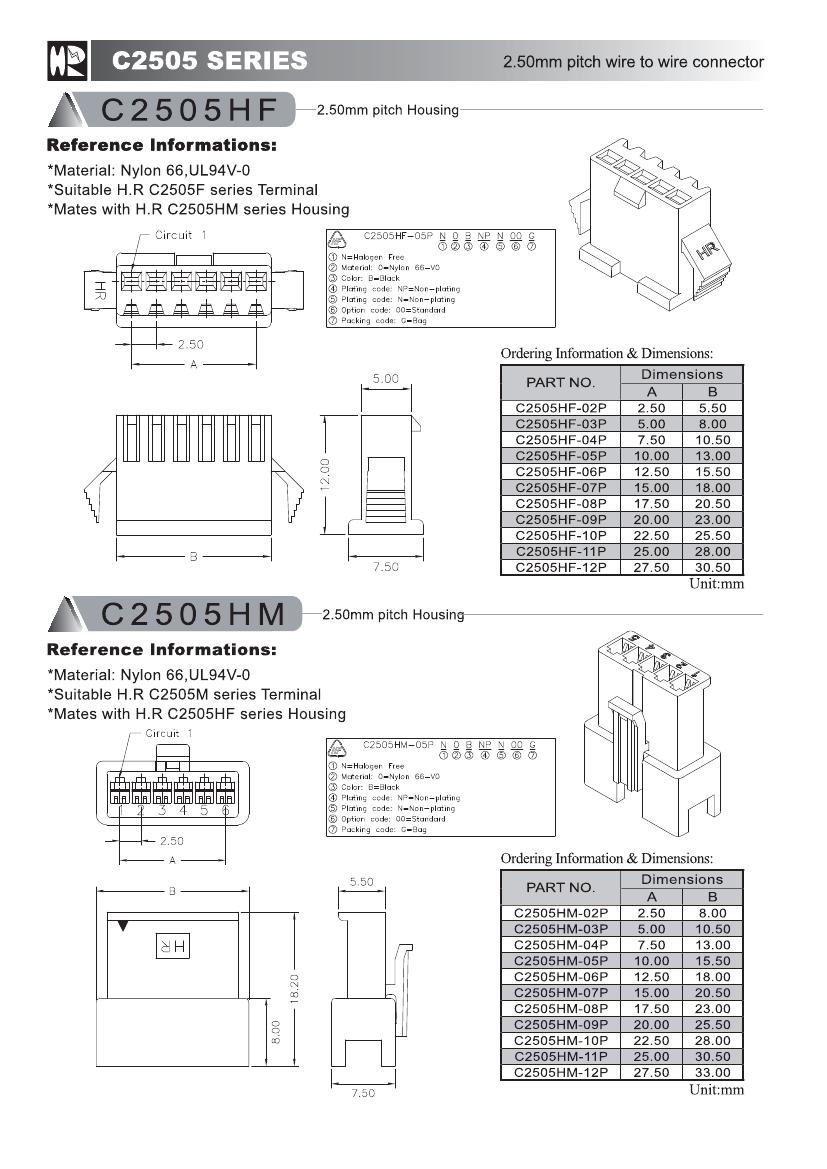

C2505 2.50mm Pitch Terminal / Housing 連接器

間距：2.50mm
型號：C2505

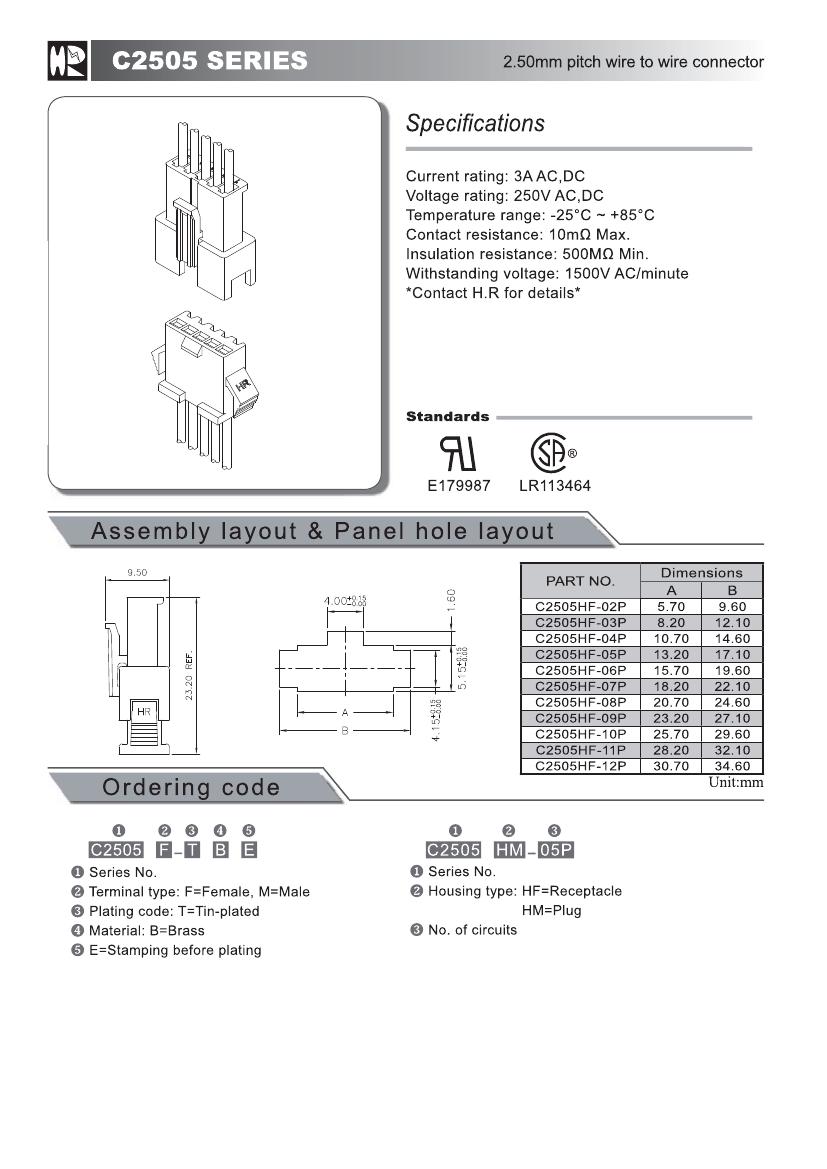

Current Rating: 3A AC, DC
Voltage Rating: 250V AC, DC
Temperature Range: -25 deg C ~ +85 deg C
Contact Resistance: 10m Omega Max.
Insulation Resistance: 500M Omega Min.
Withstanding Voltage: 1,500V AC/minute
Contact H.R for details.

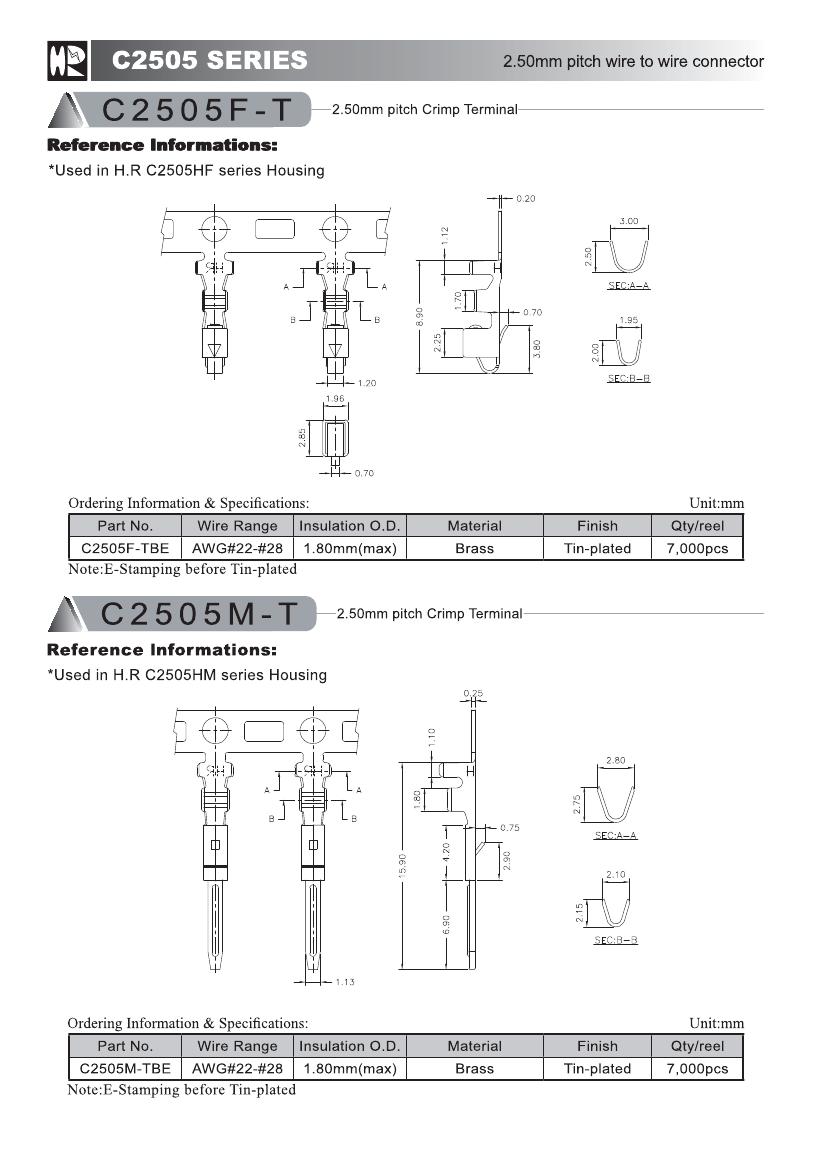

C2505F-TBE
C2505HF-02P
C2505HF-02PN0WNPN00G
C2505HF-02P-WH
C2505HF-03P
C2505HF-03PN0WNPN00G
C2505HF-03P-WH
C2505HF-04P
C2505HF-04PN0WNPN00G
C2505HF-04P-WH
C2505HF-05P
C2505HF-05PN0WNPN00G
C2505HF-05P-WH
C2505HF-06P
C2505HF-06PN0WNPN00G
C2505HF-06P-WH
C2505HF-07P
C2505HF-07PN0WNPN00G
C2505HF-07P-WH
C2505HF-08P
C2505HF-08PN0WNPN00G
C2505HF-08P-WH
C2505HF-09P
C2505HF-09PN0WNPN00G
C2505HF-09P-WH
C2505HF-10P
C2505HF-10PN0WNPN00G
C2505HF-10P-WH
C2505HF-11P
C2505HF-11PN0WNPN00G
C2505HF-11P-WH
C2505HF-12P
C2505HF-12PN0WNPN00G
C2505HF-12P-WH
C2505HM-02P
C2505HM-02PN0WNPN00G
C2505HM-02P-WH
C2505HM-03P
C2505HM-03PN0WNPN00G
C2505HM-03P-WH
C2505HM-04P
C2505HM-04PN0WNPN00G
C2505HM-04P-WH
C2505HM-05P
C2505HM-05PN0WNPN00G
C2505HM-05P-WH
C2505HM-06P
C2505HM-06PN0WNPN00G
C2505HM-06P-WH
C2505HM-07P
C2505HM-07PN0WNPN00G
C2505HM-07P-WH
C2505HM-08P
C2505HM-08PN0WNPN00G
C2505HM-08P-WH
C2505HM-09P
C2505HM-09PN0WNPN00G
C2505HM-09P-WH
C2505HM-10P
C2505HM-10PN0WNPN00G
C2505HM-10P-WH
C2505HM-11P
C2505HM-11PN0WNPN00G
C2505HM-11P-WH
C2505HM-12P
C2505HM-12PN0WNPN00G
C2505HM-12P-WH
C2505M-GBE
C2505M-TBE
